Roto-Flo Flow Indicators
Colored Paddle Wheels Go with the Flow
Molded clear polystyrene body with smooth connecting barbs allow easy installation of these flow meters.
- Internal flow channel diameter: 5 mm
- Paddle wheel shell: 25 mm
- Overall length: 51 mm
- Maximum recommended pressure: 10 p.s.i.g.
- Minimum flow: 0.5 LPM / Maximum flow: 10 LPM
- Not for use with corrosive chemicals or fluids with a temperature in excess of 64 °C (147 °F).

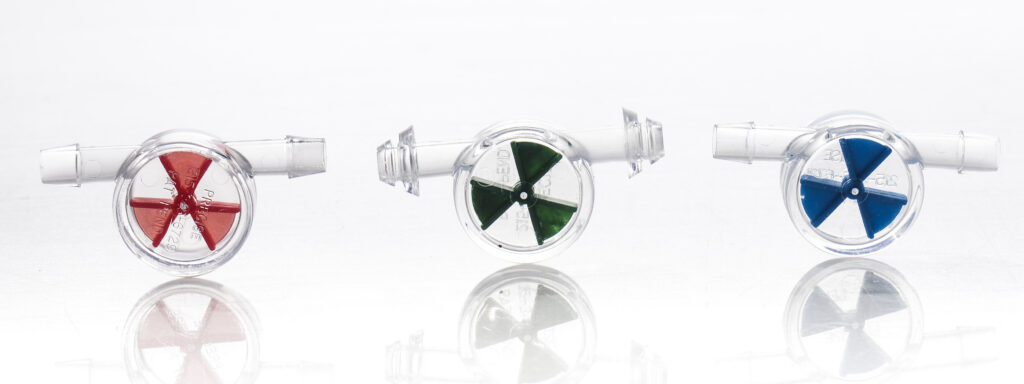

Product Variants
| Catalog No. | Color | Tubing I.D. | Dimensions (Length) | Quantity / Pack | Where to Buy |
|---|---|---|---|---|---|

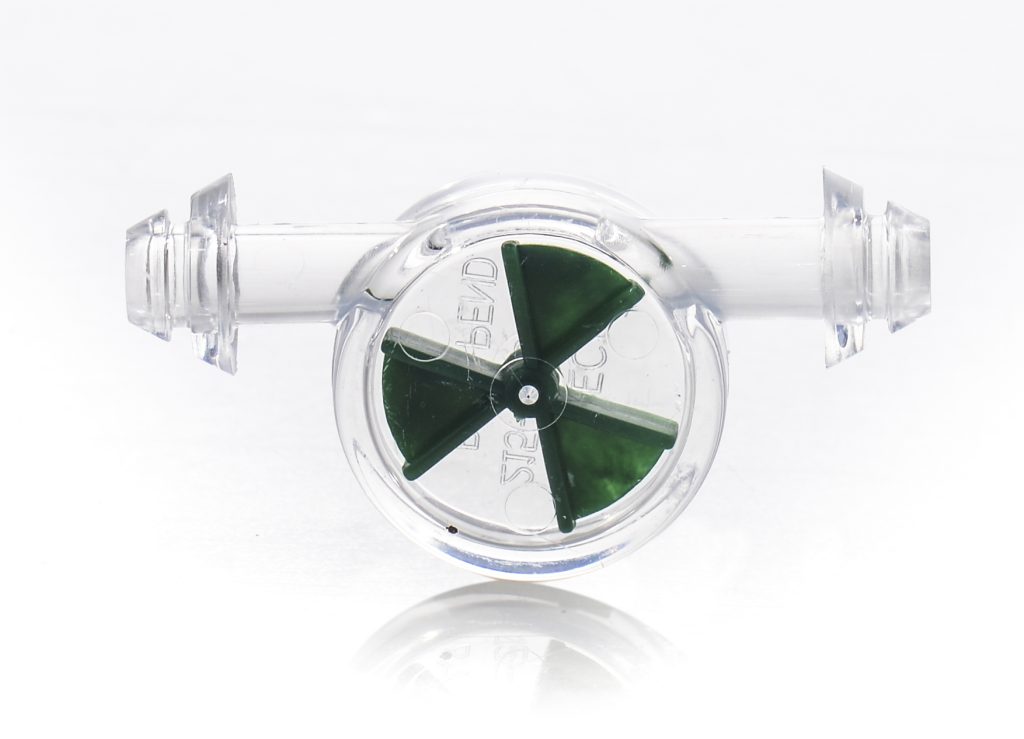

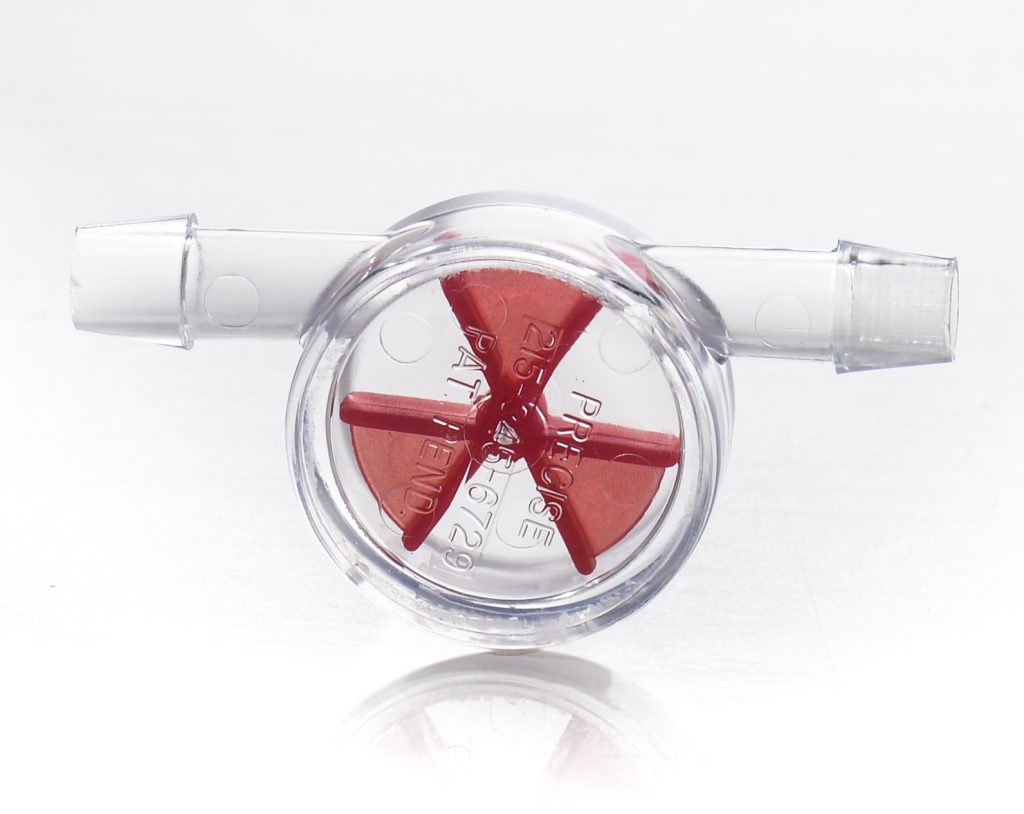

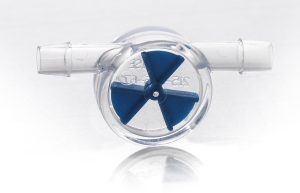

| H19937-0001 | blue | 4.8 to 6.4 mm (0.19 to 0.25") | 51 mm | 1 | Find a Distributor |
| H19937-0002 | red | 6.4 to 7.9 mm (0.25 to 0.31") | 51 mm | 1 | Find a Distributor |
| H19937-0003 | green | 7.9 to 11 mm (0.31 to 0.44") | 51 mm | 1 | Find a Distributor |
