MICRO-MILL II GRINDER

The Micro-Mill® II Grinder is ideal for rapid, high speed milling of small samples from 20 to 50ml. The ⅕ horsepower (150 Watt) motor drives a stainless steel blade that quickly pulverizes bauxite, bone, ceramics, coal, Devarda’s alloy, fertilizer, filter paper, fly ash, frozen tissue, glass, grain, kaolinites, leaves, limestone, frozen tissue, pharmaceuticals, pigment blends, rocks, roots, shale, seeds, slags, soil, teeth, wood, and more! This motor is designed to provide continuous high torque to maintain blade velocity for fastest sample pulverizing. Supplied with a 1.8M (6 ft) 3-wire grounded cord.
Two-position rocker switch allows either pulse or continuous operation to match with sample requirements
Built-in switch prevents grinder operation unless all parts are completely assembled to the base; resettable circuit breaker protects the mill if the sample jams the blade

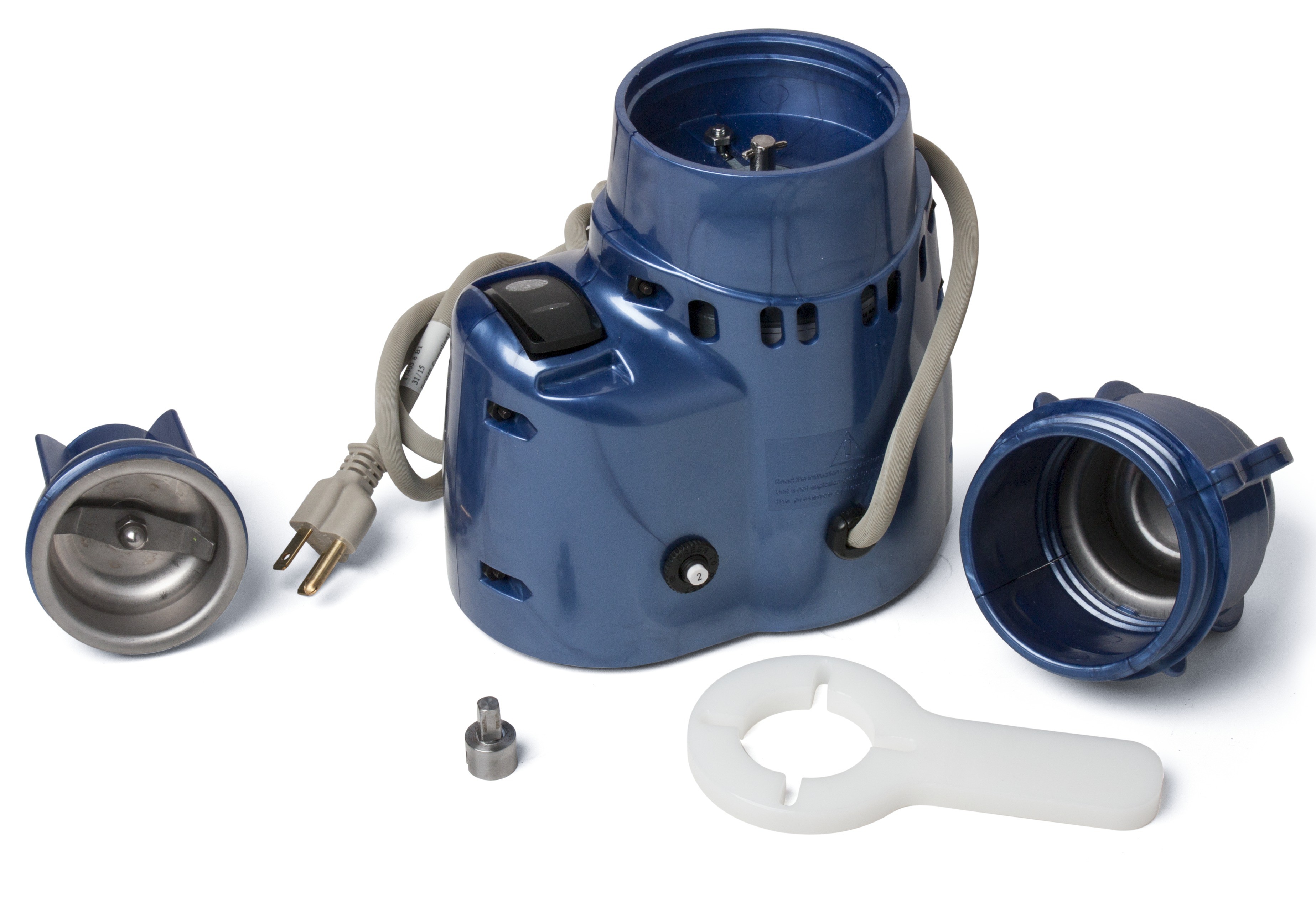

Grinding chamber assembly is removable to allow complete sample recovery and cleaning
Softer samples or temperature-sensitive samples, such as frozen tissue, leaves, roots, seeds and wood can be processed by adding dry ice to the grinding chamber during processing.
For users pulverizing very hard material, a stellite faced hard blade is available (H37258-0000).
Additional accessory grinding chamber (F37250-0011) can be used to reduce cross contamination between dissimilar samples; includes upper and lower grinding chamber sections with blade
Non-skid feet prevent movement of the mill during use and won’t mar benchtops
Overall dimensions: 30.5 x 26 x 15.9 cm high (12” x 10¼” x 6¼”); shipping weight: 2.72 kg (6 lbs)
F37250-0010: Image: CA Prop 65 Warning  WARNING:  Cancer  www.P65Warnings.ca.gov
F37250-0011: Image: CA Prop 65 Warning  WARNING:  Reproductive Harm  www.P65Warnings.ca.gov
H37258-0000: Image: CA Prop 65 Warning  WARNING:  Cancer and Reproductive Harm  www.P65Warnings.ca.gov
Catalog No.: Description Quantity / Pack Price / Pack: Order Quantity
F37250-0010
Micro-Mill® II Grinder, 115VAC, 60Hz 1 $1,780.75
F37250-0011
Micro-Mill® II Accessory Grinding Chamber 1 $411.76
H37258-0000
Hard-Faced Accessory Blade 1 $137.20
