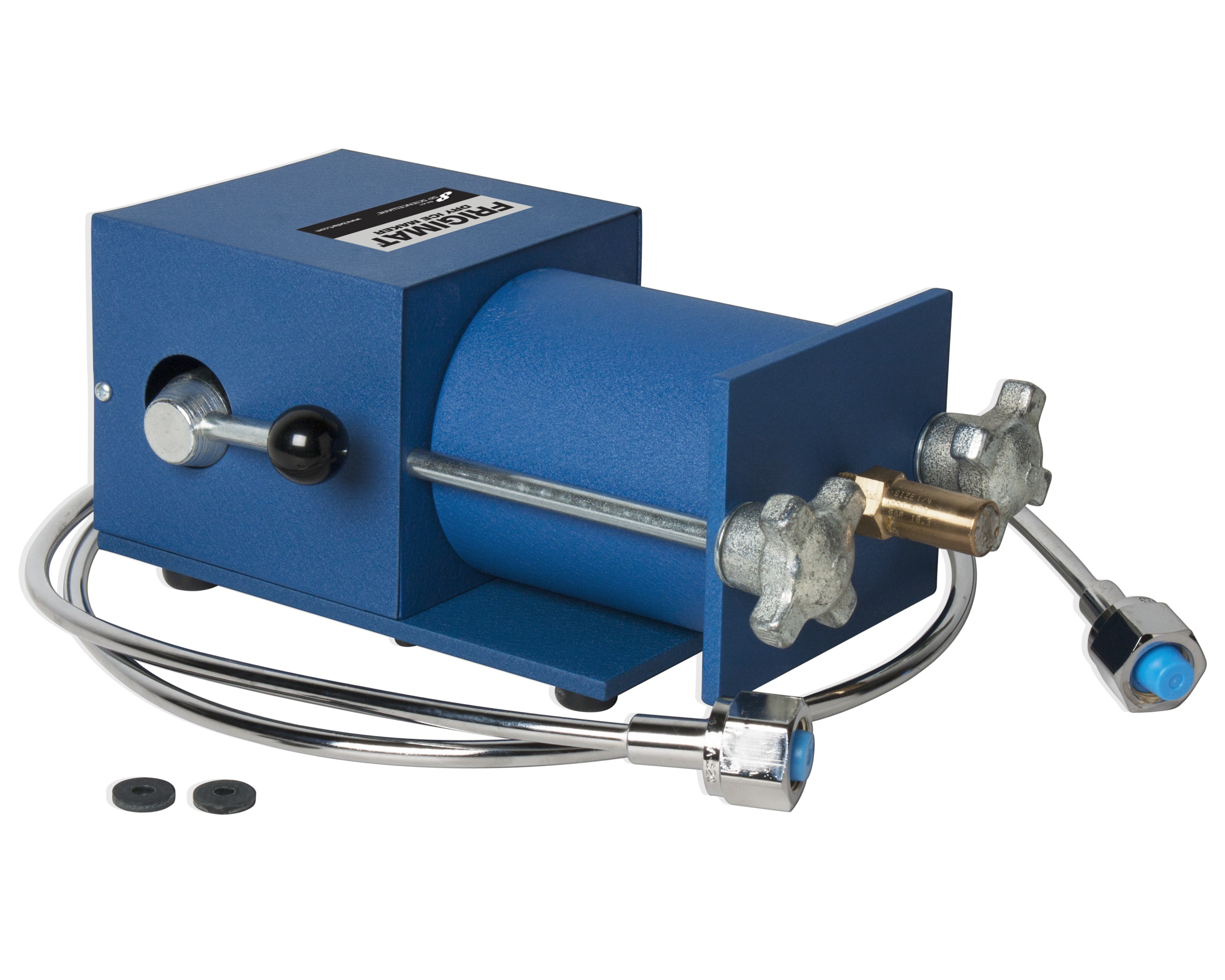

Frigimat Dry Ice Maker
Produce the Dry Ice You Need Right in the Lab
The Frigimat® eliminates the need to buy large quantities of dry ice when only a little is needed. It employs the Joule- Thomson effect to produce a solid 454gm (16 oz) block of dry ice in one to two minutes, and the block can be removed in just 30 seconds.
Brass relief valve safely vents excess gas
Each 50lb. cylinder of liquid CO2 with a dip tube will make 8 or 9 blocks of dry ice, each measuring 8.5cm (3⅜") x 11cm (4⅜") long
Made of epoxy-coated steel with an aluminum ice chamber and brass valves with four non-skid rubber feet
Includes a 1.8m (6 feet) nickel plated copper connecting tube with standard CGA 320 (0.830"-14) thread couplings for easy attachment to an LCO2 cylinder
Dimensions: 30 x 17 x 13cmH (12 x 6½ x 5"); shipping weight: 5.5kg (12lbs)
Brass relief valve safely vents excess gas
Each 50lb. cylinder of liquid CO2 with a dip tube will make 8 or 9 blocks of dry ice, each measuring 8.5cm (3⅜") x 11cm (4⅜") long
Made of epoxy-coated steel with an aluminum ice chamber and brass valves with four non-skid rubber feet
Includes a 1.8m (6 feet) nickel plated copper connecting tube with standard CGA 320 (0.830"-14) thread couplings for easy attachment to an LCO2 cylinder
Dimensions: 30 x 17 x 13cmH (12 x 6½ x 5"); shipping weight: 5.5kg (12lbs)
WARNING: Cancer www.P65Warnings.ca.gov
Catalog No.: | Description | Quantity / Pack | Price / Pack: | Order Quantity |
---|---|---|---|---|
H38878-0010 | Frigimat® Dry Ice Maker (U.S. Model) | 1 | $1,738.45 | |
H38878-0012 | Europe Model | 1 | $1,810.90 | |
H38878-0013 | Japan Model | 1 | $1,596.90 |
